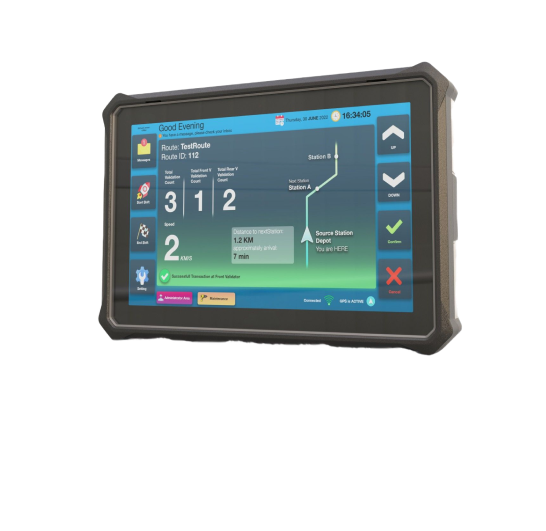

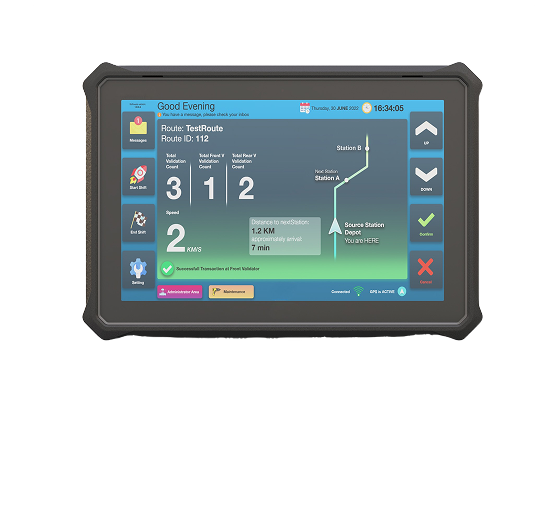

Flownex-Drive is a driver/operator console that connects the driver with the Bus CAD/AVL system and onboard devices, providing real-time route, schedule, stop progression, and service alerts through a safe, glanceable interface.
Integrated via the onboard IP network, it synchronizes with FPVs and PIS, and its open architecture ensures seamless integration, future upgrades, and CMP-compliant reliability.
| Software Platform | Yocto Linux, Android 14 |
|---|---|
| Processor | Quad-Core core Cortex processor with 1 TOPS |
| RAM | 2GB LPDDR4 / LPDDR4X |
| Storage | 8GB flash |
| Display | 10.1" multi-touch color LCD panel (720 x 1280) |
| Cellular | LTE-4G (mPcie) with Nano SIM card slot |
| Connectivity | Wi-Fi, BT 5.2 |
| Ethernet | 1 x 10/100/1000Mbps (PoE / PoE+ support (IEEE 802.3af and IEEE 802.3at ) to work as PD) |

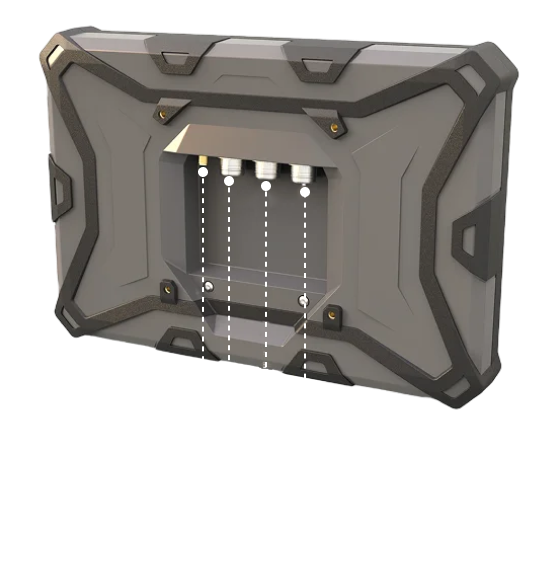

| COM Ports | 1 x RS232, 1 x RS485 |
| USB | 2 x USB-C Host and OTG |
| GPIOs | 2 x Isolated Digital Input , 4 x Isolated Digital Output |
| Audio | 1.3W@8 ohm Speaker output |
| Power Input | 9-50 VDC, 2A |
| Compliance | IK08, IP65 |
| Environmental | Operating temperature: -20°C~60°C Relative humidity (non-condense): 5% ~ |
