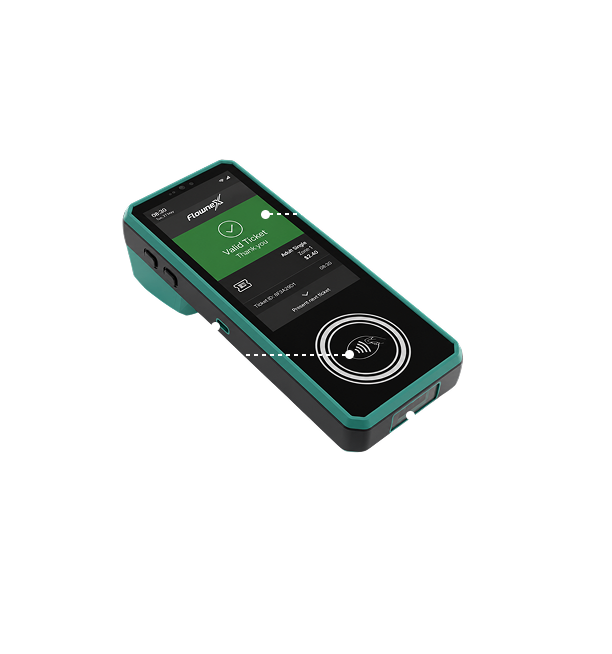

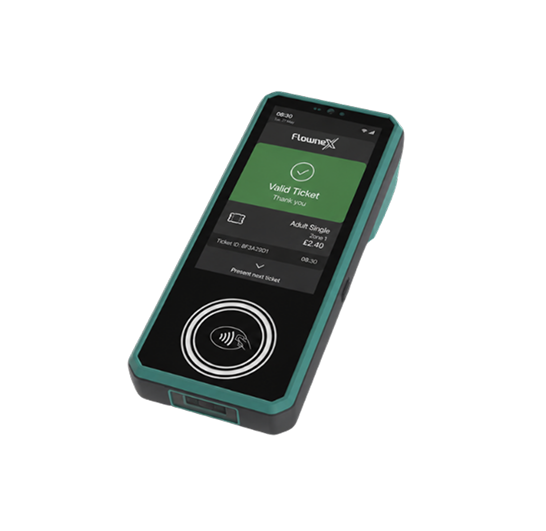

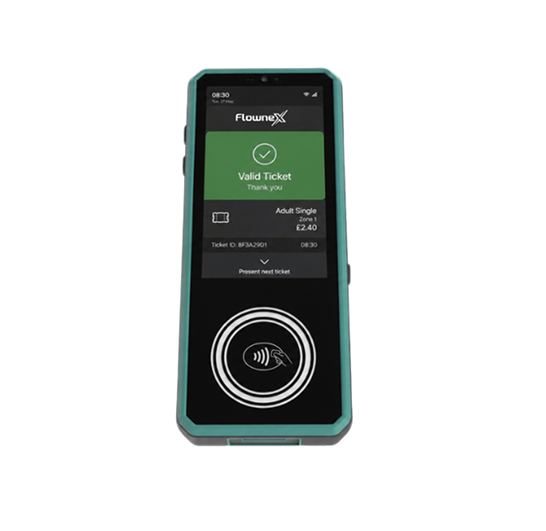

Contactless Ticket Validator Rio is a rugged, lightweight handheld POS terminal engineered to streamline mobile fare collection and secure on-the-go payments. By combining rapid processing with a highly intuitive interface, it transforms complex transit ticketing into a fast, seamless checkout experience for both passengers and operators.
| Processor | Quad-Core core Cortex-A55 @ 1.8GHz |
|---|---|
| GPU | Mali-G52 GPU. Support OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1 |
| RAM | 2GB LPDDR4 / LPDDR4X |
| Memory | 16GB Flash |
| External Memory | MicroSD Card |
| Operating System | Android 14 |
| Display | 5", 720 x 1280 with Capacitive Touch Screen |
| SIM Card | Dual Standard SIM (Size ID-000) |
| Network Connectivity | LTE-4G (mPCIe) with Nano SIM Card Slot |
| Camera | Front Camera: 8 Mega Pixel Fixed Focus |
| Contactless Card Reader | Contactless ISO14443 A & B, MIFARE family, Sony Felica, EMV Contactless |
| Payment Schemes | EMV contactless, Discover, JCB, Interac, Apple Pay, Google Pay, Diners Club, Union Pay, MasterCard, Visa, Samsung Pay |
| SAM Module | 4 × SAM Slots |
| Scanner | High Performance 1D / 2D Scan Engine |
| GNSS | GPS, GLONASS, BDS, Galileo, QZSS, SBAS |
| Wi-Fi | Wi-Fi (Dual Band 2.4GHz/ 5GHz) |
| Bluetooth | BLE 5.2 |
| Printer | Direct Line Thermal, 57mm Paper Width |
| USB Port | Type-C USB 2.0 (High-Speed) / USB 3.1 (Full-Speed) |
| Battery | 7500mAh Li-Po Battery |
| Power Supply | Type-C Fast Charger |
| External Ports | RS232 |
| Operating Temperature | -20°C to 50°C |
| Dimensions | 205mm (H) × 87.5mm (W) × 57mm (D) |
