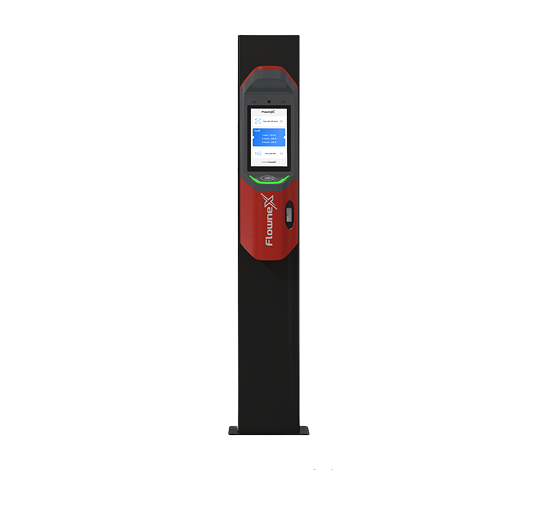

CTV-Tap is a compact, self-service transit recharge terminal that enables passengers to quickly check balances, top-up their cards, and manage accounts, right at the station platform. It is designed for seamless mobility in metros, buses, and multimodal hubs.
| Software Platform | Yocto Linux, Android 14 |
|---|---|
| Processor | Quad-Core core Cortex-A55 @ 2.0GHz |
| NPU | 1 TOPS |
| GPU | Mali-G52 GPU. Support OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1 |
| RAM | 2GB LPDDR4 |
| Storage | 16GB flash |

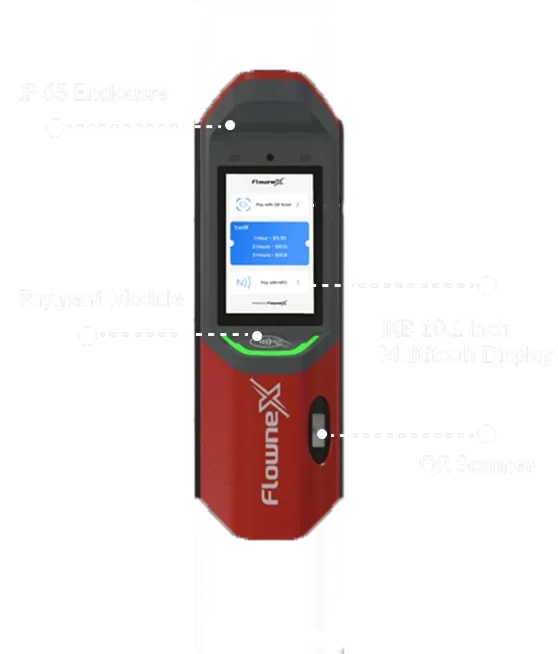

| Display | 10" multi-touch color LCD panel (720 x 1280) |
| Card Readers | Contactless ISO14443 A & B, MIFARE family, Sony Felica, EMV Contactless |
| SAM | 4 x SAM slots |
| Barcode Scanner | High Performance 1D/2D Scan Engine |
| Cellular | LTE-4G with Nano SIM card slot |
| Connectivity | Wi-Fi (Dual Band 2.4GHz/ 5GHz), BT 5.2 |
| Positioning System | Multi-GNSS , GPS, Glonass, Galileo |
| LAN | 1 x 10/100/1000Mbps |
| Serail Ports | 1 x RS232, 1 x RS485 |
| USB | 2 x USB-C Host and OTG |
| Gpios |
|
| Audio | 2 x 2W Speake |
| Power | Input : 9-50 VDC, Consumption < 20W |
| Environmental |
|

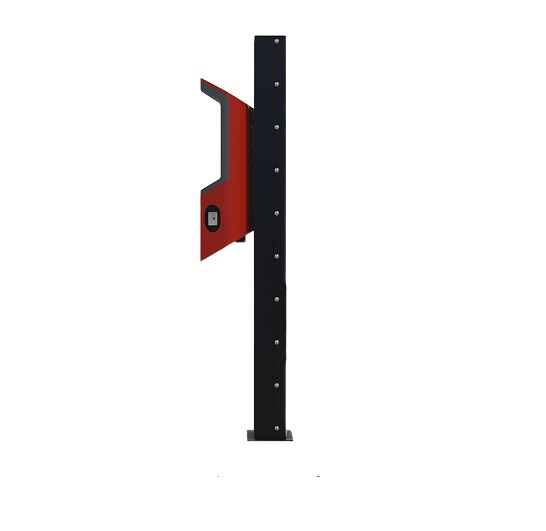

| Dimensions | 720 mm (L) x 220 mm (W) x 190 mm (D) |
