Flownex CTV Neo

Flownex CTV
Flownex CTV
Flownex CTV

Flownex CTV Neo

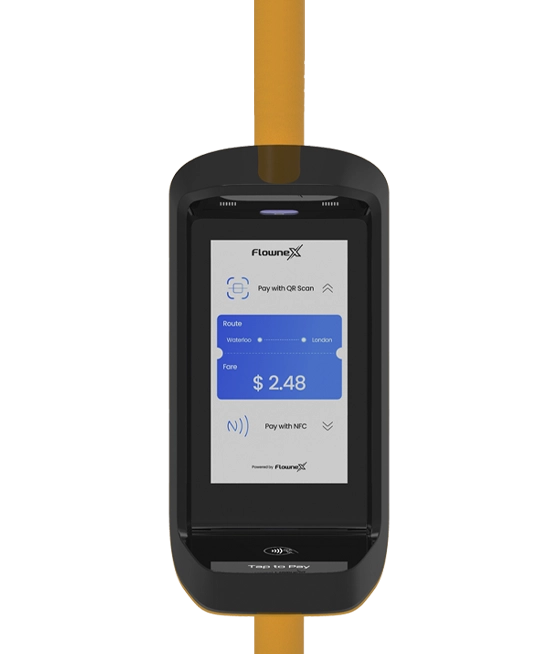

Flownex CTV Neo is a versatile ticket validator for transit, parking, and entertainment venues like cinemas and stadiums. Supporting EMV, QR, NFC, and closed-loop cards, it ensures secure, seamless payments and quick access across diverse environments.

LEARN MORE

Features


High Resolution Colour Graphical Display


Fully Programmable User Interface


Multilanguage Support


Internal GNSS & 4G-LTE Modules


Wall Mount and Pole Mount Support


High Speed SAM Controller


High Performance 2D Image Engine


EMV Level 1, 2 & 3 Certified Contactless Card

Parallax Image

I/O Module

QR Code

Touch Screen

GPS Live Tracking

Contactless EMV

Cellular Connectivity

Specification

Software Platform Yocto Linux, Android 12
Processor Quad-Core core Cortex-A55 @ 1.8GHz
RAM 2GB LPDDR4 / LPDDR4X
Storage 8GB flash
Display 7" multi-touch color LCD panel (720 x 1280)
Card Readers Contactless On Screen NFC contactless: ISO14443 A & B, MIFARE, Sony Felica
SAM 4 x SAM slots
Barcode Scanner High Performance 1D/2D Barcode Scanner Engine
Cellular LTE-4G (mPcie) with Nano SIM card slot
Connectivity Wi-Fi, BT 5.2
Location accuracy <= 3 meter
Ethernet 1 x 10/100/1000Mbps
COM Ports 1 x RS232, 1 x RS485
USB 2 x USB-C Host and OTG
Gpios
  • 2 x Isolated Digital Input
  • 4 x Isolated Digital Output
Audio 1.3W@8 ohm Speaker output
Power Input 9-36 VDC, 2A
Environmental
  • Operating temperature: -20°C~60°C (-4°F~ 140°F)
  • Storage temperature: -20°C~70°C (-4°F~ 158°F)
  • Relative humidity (non-condense): 5% ~ 95%
Dimensions 300 mm (L) x 140 mm (B) x 90 mm (W)
DOWNLOAD
BROCHURE
