Contactless
Ticket Validator

Flownex CTV Lite

Flownex CUBE
Flownex CTV
Flownex CTV

Flownex CTV Lite

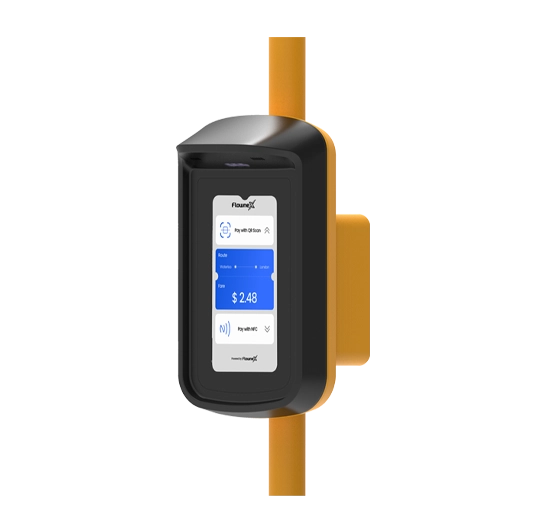

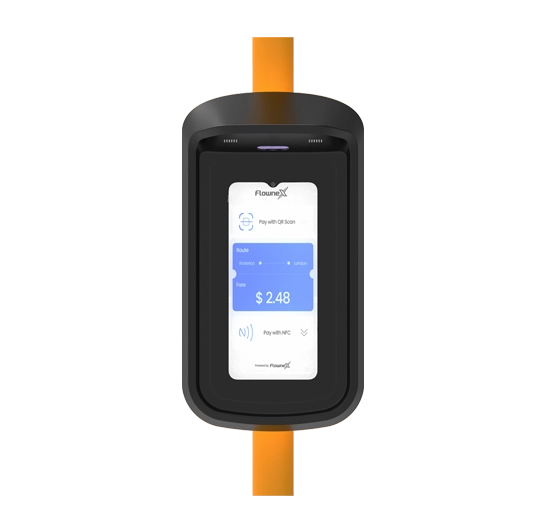

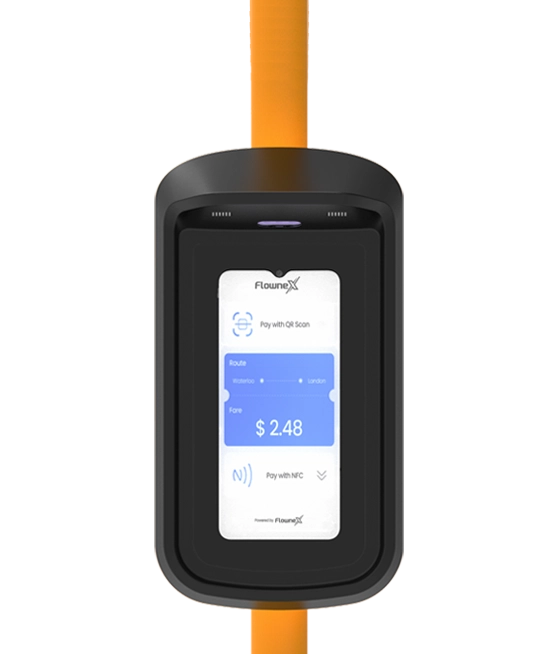

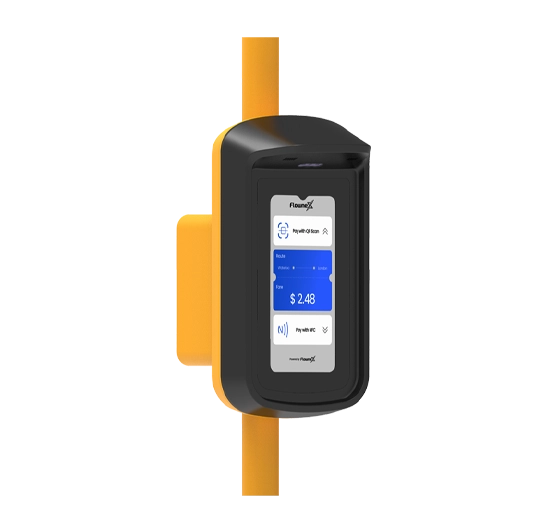

Flownex CTV Lite is a compact ticket validator designed for transit, parking, and entertainment venues. Featuring a 6.5-inch display, it supports EMV, QR, NFC, and closed-loop cards to deliver secure, seamless transactions and quick access for passengers and visitors

LEARN MORE

Features


High Resolution Colour Graphical Display


Fully Programmable User Interface


Multi-language Support


Internal GNSS & 4G-LTE Modules


EMV Level 1, 2 & 3 Certified Contactless Card Reader


High Speed SAM Controller


Wall Mount and Pole Mount Support


High-performance 2D Image Engine able

Parallax Image

I/O Module

GPS Live Tracking

QR Code

Contactless EMV

Cellular Connectivity

Specification

Software Platform Secure Android 12
Processor Quad-Core @ 2.0GHz
RAM 2GB LPDDR4
Storage 16GB flash
Display 6.5" multi-color LCD panel (720 x 1600)
Camera Front-facing: 2MP FF
Card Readers
  • Contactless On Screen
  • NFC contactless: ISO14443 A & B, MIFARE, Sony Felica
SAM 4 x SAM slots
Barcode Scanner High Performance 1D/2D Barcode Scanner Engine
Cellular LTE-4G with Nano SIM card slot
Connectivity Wi-Fi, BT 5.0
COM Ports RS232, RS485
USB 2 x USB-C Host and OTG
Audio 3W Speaker output
Power Input 9-45VDC, 2A
Environmental
  • Operating temperature: -10°C~50°C (14°F~ 122°F)
  • Storage temperature: -20°C~70°C (-4°F~ 158°F)
  • Relative humidity (non-condense): 5% ~ 95%
Dimensions 260 mm (L) x 140 mm (B) x 90 mm (W)
